In Spaces Flex, you can reposition objects as needed. You can move an item in the project either with the Move tool or by using your mouse.
To learn how to move objects in Spaces Flex, follow the procedures below:
Move object with the mouse

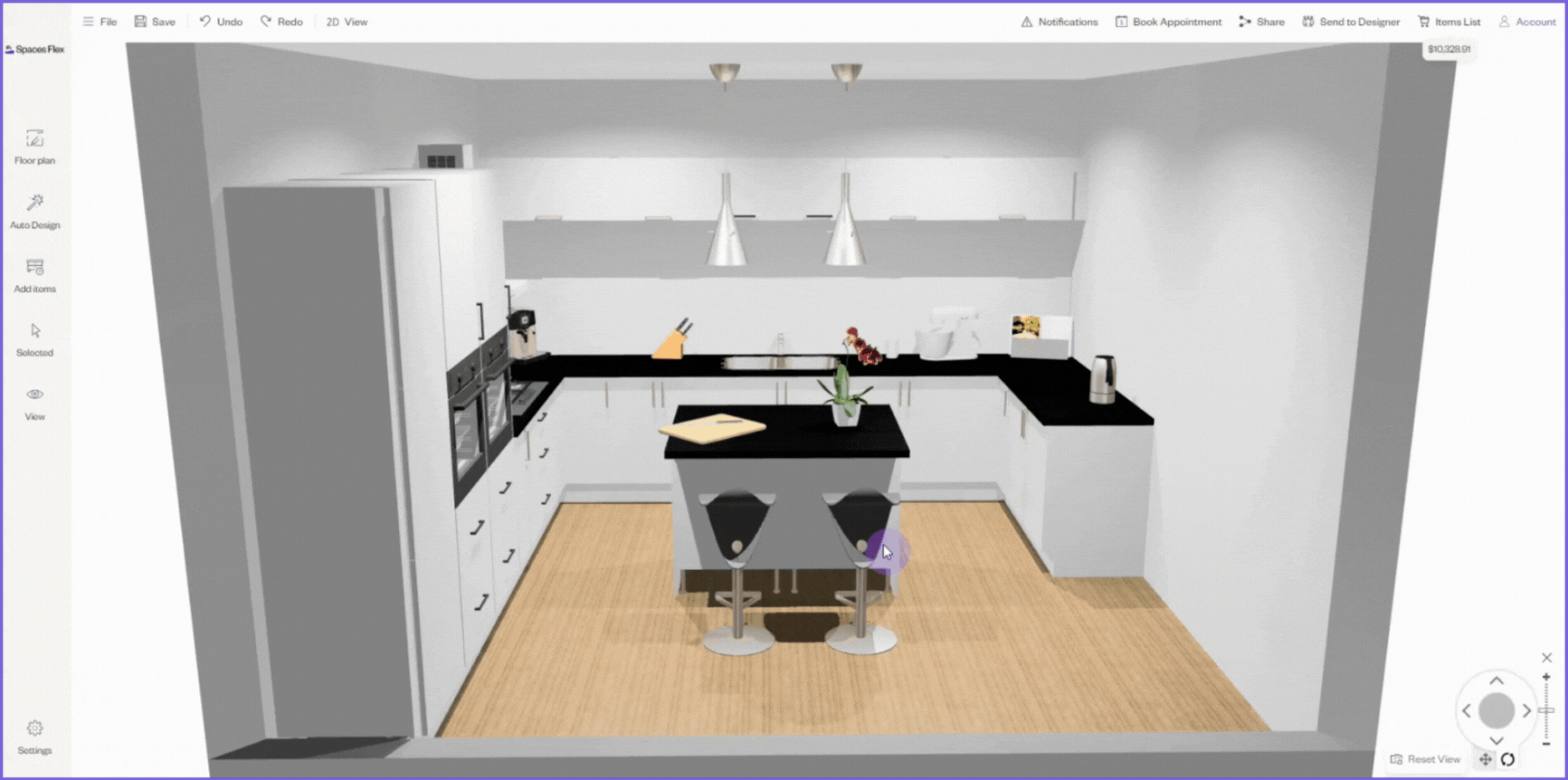

1. To move an object with the mouse, select the object you want to move. With the left mouse button pressed, drag the object to the desired location.
Move object with the Move tool

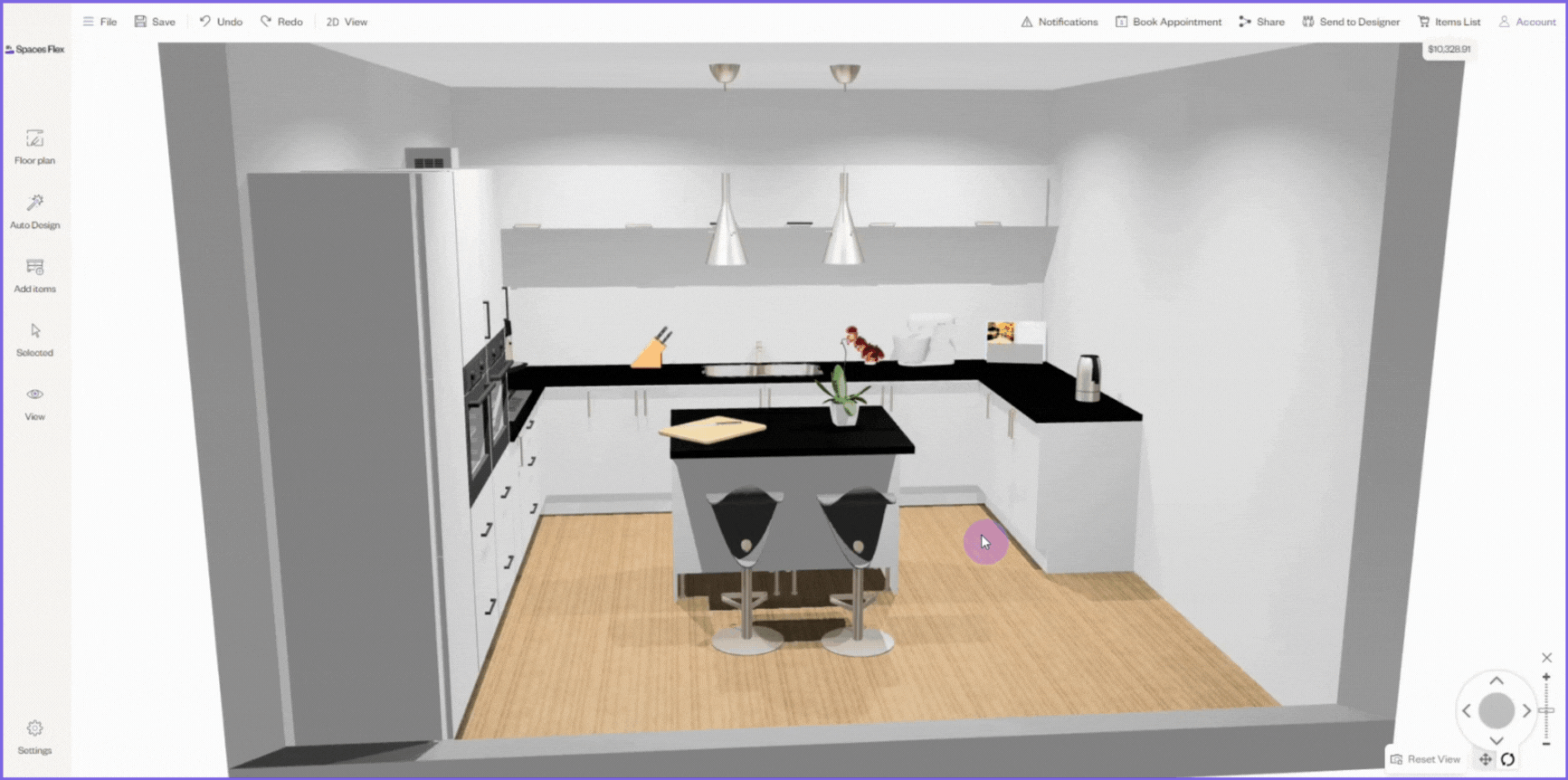

1. To move an object using the Move tool, select the item you want to move and click on the indicated tool :
2. Then define the direction in which you want to move the item. Each side is represented by a colored arrow. Position the mouse over the corresponding arrow, press the left mouse button, and move the object.
| Note: When using the Move tool in 2D mode, you can only move the object from side to side. |
