In addition to the entire 3D design, decoration, and rendering of the environment, in SFx, it is possible to generate basic and efficient documentation of the developed design.
One of these documents is the Elevations, where you can visualize the design with the measurements of the items, dimensions, and more.
To generate documentation, follow the steps below:
Generate an Elevation

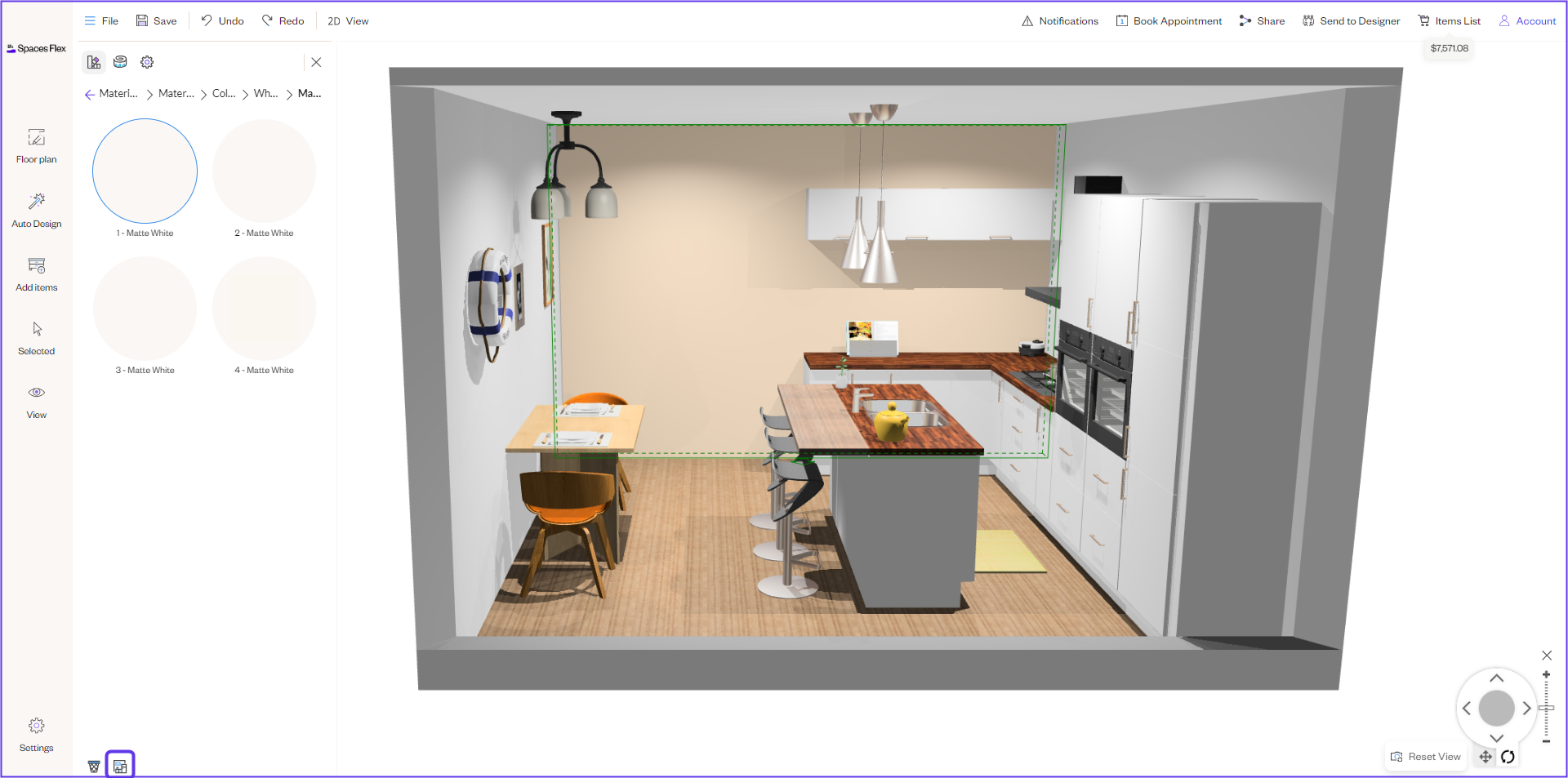

1. Select the wall where the modules you want to generate documentation for are placed, and click on the indicated tool .

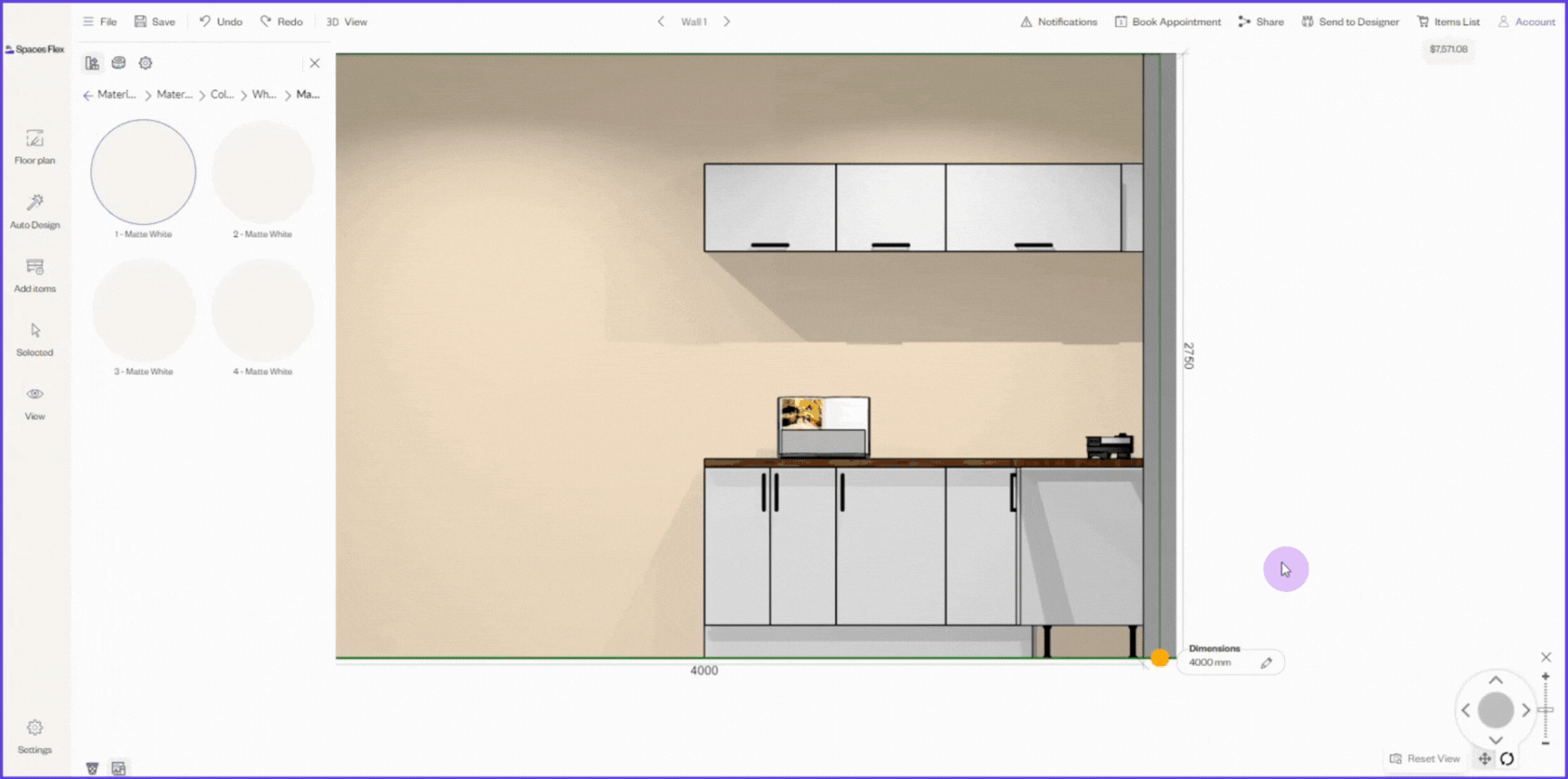

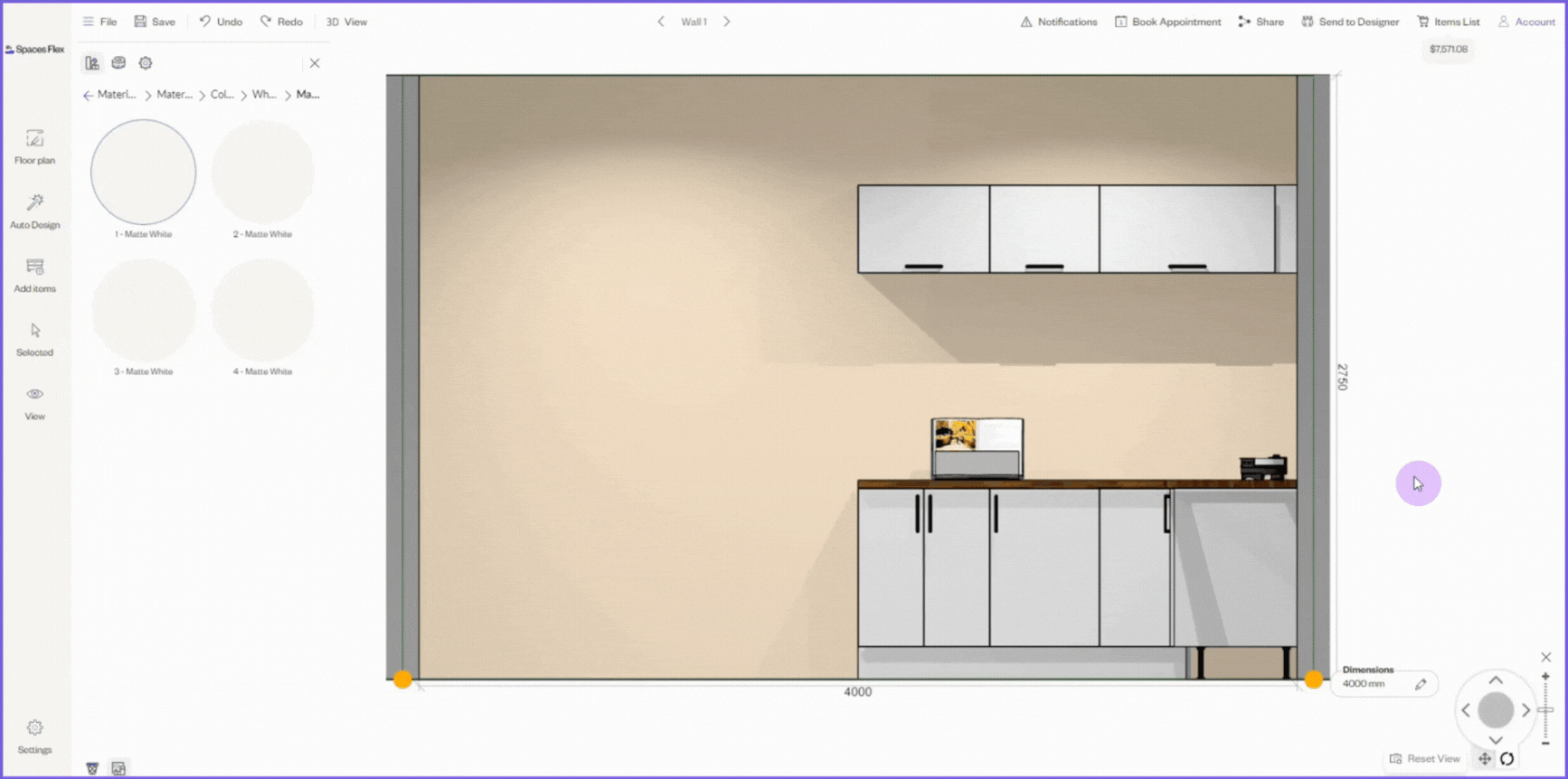

2. By clicking on the tool, SFx automatically creates the Elevations with the design information. Use the navigation arrows to switch between the walls.
3. To return to the normal mode of the project, click again on the indicated tool .
Saving an Elevation
1. To save the elevations created in SFx, access the shopping cart and scroll to the bottom of the page. You will find your saved elevations there:
2. Next, click on Download to initiate the download.
